CENTRIFUGAL FAN HIGH PRESSURE
Type SP, SR
Capacity from 120 to 000 m3/h. SP Series, SR capacity up to 54.000 m3/h.
Total pressure from 200 to 2.000 daPa.
Total pressure from 200 to 2.000 daPa.
Max temperature of the carried air is 80°C, for temperature values up to 150°C
the fans will be provided with a cooling fan and will be varnished with high-temperature aluminium paint
Type SR, N8
Capacity from 2.400 to 156.000 m3/h.
Total pressure from 400 to 1.800 daPa.
Max temperature of the carried air is 90°C, for temperature values up to 350°C
the fans will be provided with a cooling fan and will be varnished with high-temperature aluminium paint
CENTRIFUGAL FAN MIDDLE PRESSURE
Capacity from 180 to 38.000 m3/h, 50,000 m3/h, 120,000 m3/h
Total pressure from 20 to 600 daPa.
Max temperature of the carried air is 80°C
CENTRIFUGAL FAN LOW PRESSURE
Centrifugal fans for clean or low dust content air, suitable for small suction and ventilation plants, for cooling of electric devices, motors and machine tools.
The fans are provided with a directly coupled asynchronous three-phase motor (a single-phase motor on request), forward blades impeller, and a casing in galvanized sheet iron.
Capacity from 60 to 2100 m3/h.
Total pressure from 5 to 120 daPa.
Max temperature of the carried air is 90°C.

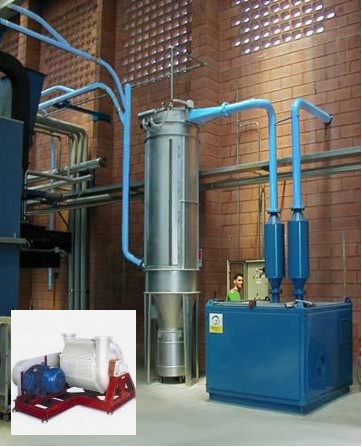

CENTRIFUGAL MULTI STAGE BLOWER
When in operation, the MICO blowers could cause a noise level over 80 dB (A) according to the performance values of the flow rate and the pressure, and according to the reverberation characteristics of the environment.
Inlet fluid max. temperature: 100°C (referring to air).
The temperature Δt of the fluids treated by the blower between intake and delivery is ~ 50°C

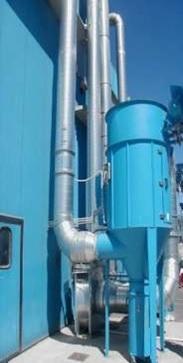

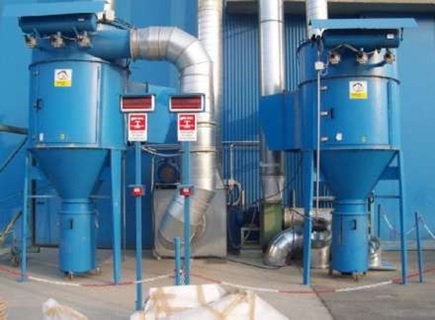

DUST COLLECTOR SYSTEM
Bag Filter housing, Filter Cartridge Sleeve, Centrigugal Fan
